Used AZS block second hand electrical fused brick used for glass furnace


Model Number:

Certification:

Minimum Order Quantity:



Description
Product Description

 Used AZS block second hand electical fused brick used for glass furnace

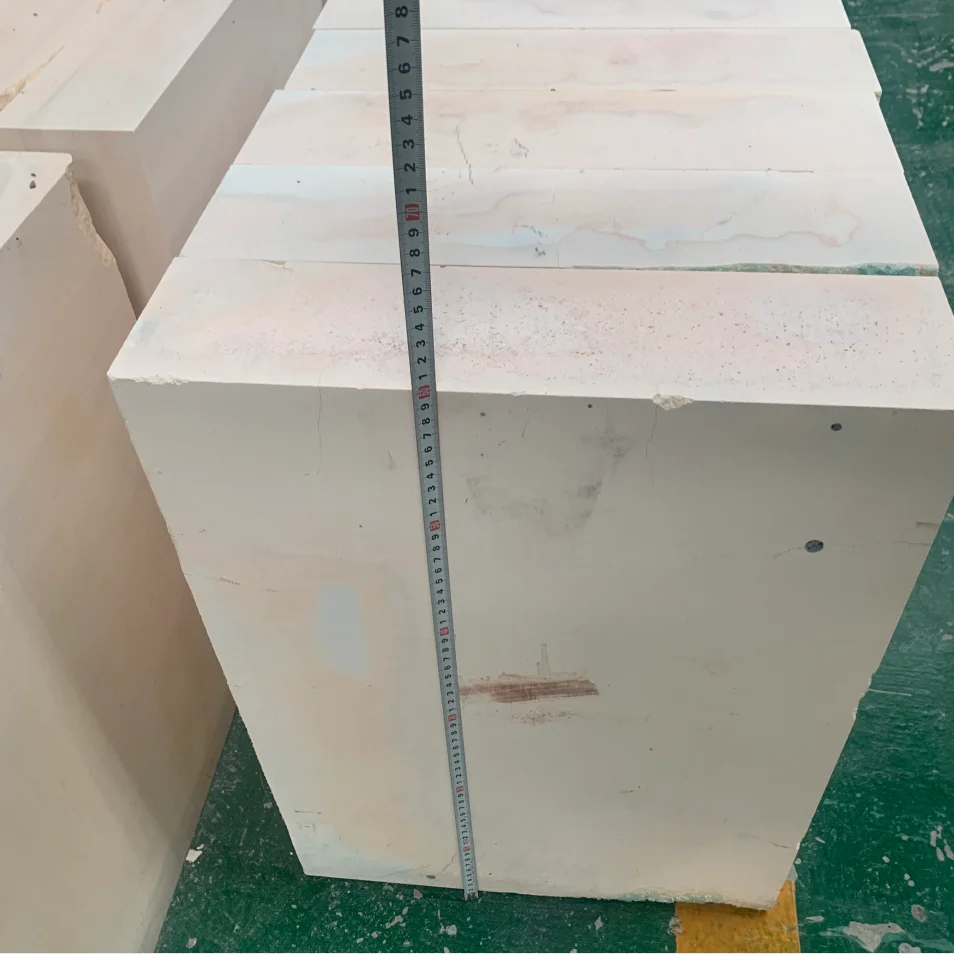

      Used AZS Block  is remove from glass kiln, and kept in good condition .We can reprocess waste AZS grog scrap according to your specification or requirements.

       Fused zirconia corundum brick(also known as AZS brick) is made by the process of completely melting the raw material firstly and then cast in the mold, finally cooling, solidification. This product shrinkage should be paid special attention in using, which is caused during the volume shrinkage in the condensation process. Fused zirconia corundum brick casting methods divide into ordinary casting, tilting casting, no shrinkage casting and quasi-no shrinkage casting. AZS products with different casting methods can meet the use requirements of various parts in the ceramic frit furnace, spent flower alkali furnace, glass kiln.

Used AZS block second hand electrical fused brick used for glass furnace



 Used AZS block second hand electrical fused brick used for glass furnace



Used AZS block second hand electrical fused brick used for glass furnace

Specification

 Used AZS block second hand electical fused brick used for glass kiln

Chemical and physical index of Used AZS Block:





Items AZS #33 AZS #36 AZS #41
Chemical composition % Al2O3 ≥50% ≥49% ≥45%
ZrO2 32%~36% 35~40% 40~44%
SiO2                      ≤ 16.00% 14% 13%
Na2O                    ≤ 1.45% 1.45% 1.30%

Fe2O3+TiO2+CaO

+Mgo+Na2O+K2O ≤

2.00% 2.00% 2.00%
Fe2O3+TiO2           ≤ 0.30% 0.30% 0.30%
Bulk Density,                g/cm3, ≥ 3.75 3.8 3.95
Apparent Porosity,                    ≤ 1.50% 1.00% 1.00%
Melting glass erosion resisting seed at static state(normal sodaglass,1500  ℃*36h)         ≤ 1.6 1.5 1.3
Pefining temperature oh  glass         ℃ ≥ 1400 1400 1400
Bubble Separation Rate(normal soda-lime glass,1300  ℃*10h)                                                                             % ≤ 2.0  1.5  1.0
Glass volume(1500  ℃*4h) % ≤ 2.00% 3.00% 3.00%
Bulk Density  PT,QX          g/cm3, ≥ 3.45 3.45 3.55
ZWS             g/cm3, ≥ 3.60  3.70  3.85
WS               g/cm3, ≥ 3.70  3.80  3.95







Used AZS block second hand electrical fused brick used for glass furnace



Used AZS block second hand electrical fused brick used for glass furnace





Used AZS block second hand electrical fused brick used for glass furnace





Application

 Used AZS block second hand electical fused brick used for glass kiln



There are two using ways of Refractory Used AZS Block:

1.  large piece of recycled waste AZS gorg scrap, generally used to re-polish and reprocess to be  new brick, can be used  in the glass kiln, that will save costs.



Used AZS block second hand electrical fused brick used for glass furnace





2. small piece of waste AZS grog Scrap, because of  small size, it can only be used to break into unshaped material.

Used AZS block second hand electrical fused brick used for glass furnace





Packaging & Shipping

Used AZS block second hand electrical fused brick used for glass furnace



 Packing

Standard export wooden pallet with cardboard and PET strap.

1. Strong packing will protect the goods from any possible damage during transit.
2. Solid packing and overall stuffing can prevent the cases from vibration and jarring.
3. We must take necessary precaution that the packing can protect goods from pilferage or rain.
4. We can confirm that we take every possible precaution to ensure that our products reach our customers all over the world in prime conditon.

Shipping

By vessel or by train from any Chinese port, Samples can be delivered by International express.



Delivery:

15-30 days working day for large quantity. The shipment we will arrange as soon as possible. Of course, if it is a custom products, the shipping time will delay.
Sample:

Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like. Bulk order: Usually by sea.

Payment:

It can be through T/T, L/C at sight. The specific terms determined according to the quantity of the goods, etc.
Your inquiry related to our product & price will be replied within 24 hours.
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.





Company Information

Henan hongtai kiln refractory co., LTD. is establised in 2012,located in Xinmi City, 40 kilometers southwest of Zhengzhou City in Henan Province, close to JingGuang,Longhai railway lines, with road transport facilities.Rich resoures of Refractory materials, adequate and qualified fuel in this area, provide unique conditions for refractory production,shipping and refractory industry development.

By the tirelless pursuit and development, our company has more than 280 empoyees at present, including 26 technical egineer, 18 senior titles, 8 juniour titles.Equipped with computer equipment system, one intelligent high-temperature tunnel kiln,three fully automated high-temperature energy-saving environmental protection shuttle kilns and one automatic unshaped refractory production line, the production capacity of refractory materials can be 60,000 tons per year and widely used in metallurgy, glass, ceramics, cement and power chemical industry,ect. With stable and superior performance, our products are in great demand in more than 20 provinces and autonomous regions, and export to Russia, Brazil, Vietnam,Italy, South Africa, South , Thailand, Singpore, Indonesia and other contries.


Used AZS block second hand electrical fused brick used for glass furnace



Henan hongtai kiln refractory co., LTD. has been always adhere to the principle of "quality first, credibility first, users first, quanlity and efficiency", has won the honor of "national measurement of qualified units""service standardization standards unit",which are recognized by higher office, was rated as Henan Province Contract and Keeping Promises Company, and has passed through ISO 9001:2000 Quality Mnagement System Confirmatrion, In order to meet the needs of market developemtn, we establish a "production, learning,research"strategic partnership with High Temperature Research Institute of Henann University of Science and Tchnology,and maintain long-term technical cooperation with Luoyang refractory research Institutions, the Iron and Steel Desigh Institute, Wuhan Iron and Steel Design Istitute and other scientific research institutions.Constantly adjust the production process,update product quality,built a solid foundation for wining a higher market hornor. Besides,all staff of high and low temperature furnace desigh, installation, manufacture, commissioning capacity of the company commit to every client: According to the different needs of users, we will thank all users' care by better service,higher product quality!

Sincerely welcome new and old customers at home and abroad, cooperate friendly with us, hand in hand to create a better future!

 Used AZS block second hand electrical fused brick used for glass furnace



Production Equipments:



Used AZS block second hand electrical fused brick used for glass furnace



Test Equipments:



Used AZS block second hand electrical fused brick used for glass furnace





Customer

The products are sold all over the country, as far as Vietnam, India, Pakistan, kazakhstan, and other southeast Asian countries and regions.



Used AZS block second hand electrical fused brick used for glass furnace

Contact Us

Used AZS block second hand electrical fused brick used for glass furnace


Production Equipment

Production capacity: Our factory actively response to government environmental protection policy, we designed and built the fully automatic controlled high temperature gas tunnel kiln (1700℃), and got capacity of annual output 70,000 tons of high quality refractory products.

Testing Testing Testing Testing
Packing Details
Packing details:

★Bricks: Fumigated wooden pallet with log paperboard covered and stainless steel band strapping, the whole outside is wrapped with thermoplastic film. Or carton packaging.

★Wooden pallet size: usually 92*92cm (standard brick)

★Castable: Ton bag with rain film and 25kg bags inside

★Or according to customer’s requirements

PackingPackingPackingPacking
Transportation

★Port of dispatch: Tianjin port; Qingdao port

★Delivery time: According to customer’s demand or two sides negotiate

TransportationTransportationTransportationTransportation
Our Services

We provide you

★Timely response: Timely response to your inquiry within 24 hours and provide solution.

★Competitive Price: Make the products competitive in your market.

★Free sample: Free sample are offered, trial order are accepted for quality evaluation.

★Strict quality control: We set Quality Management System, from the raw material to finished products, produce high quality products according to chemical & physical specifications strictly to satisfy customers’ needs.

★Fast delivery time: Within 3-30 days according to your quantity after receiving your advance payment.

★ Professional services: Provide pictures from order to delivery. Inspect report by our country’s designated authority and oversea services if necessary.

We are here for you!

ServicesServicesServicesServices
Certification:  (ISO 9001:2015)
